Structure-Aware Correspondence Learning for Relative Pose Estimation

CVPR 2025
Yihan Chen1, Wenfei Yang1, Huan Ren1, Shifeng Zhang3, Tianzhu Zhang1,2 Feng Wu1
1University of Science and Technology of China, 2National Key Laboratoray of Deep Space Exploration, Deep Space Exploration Laboratory, 3Sangfor Technologies
Paper arXiv Code

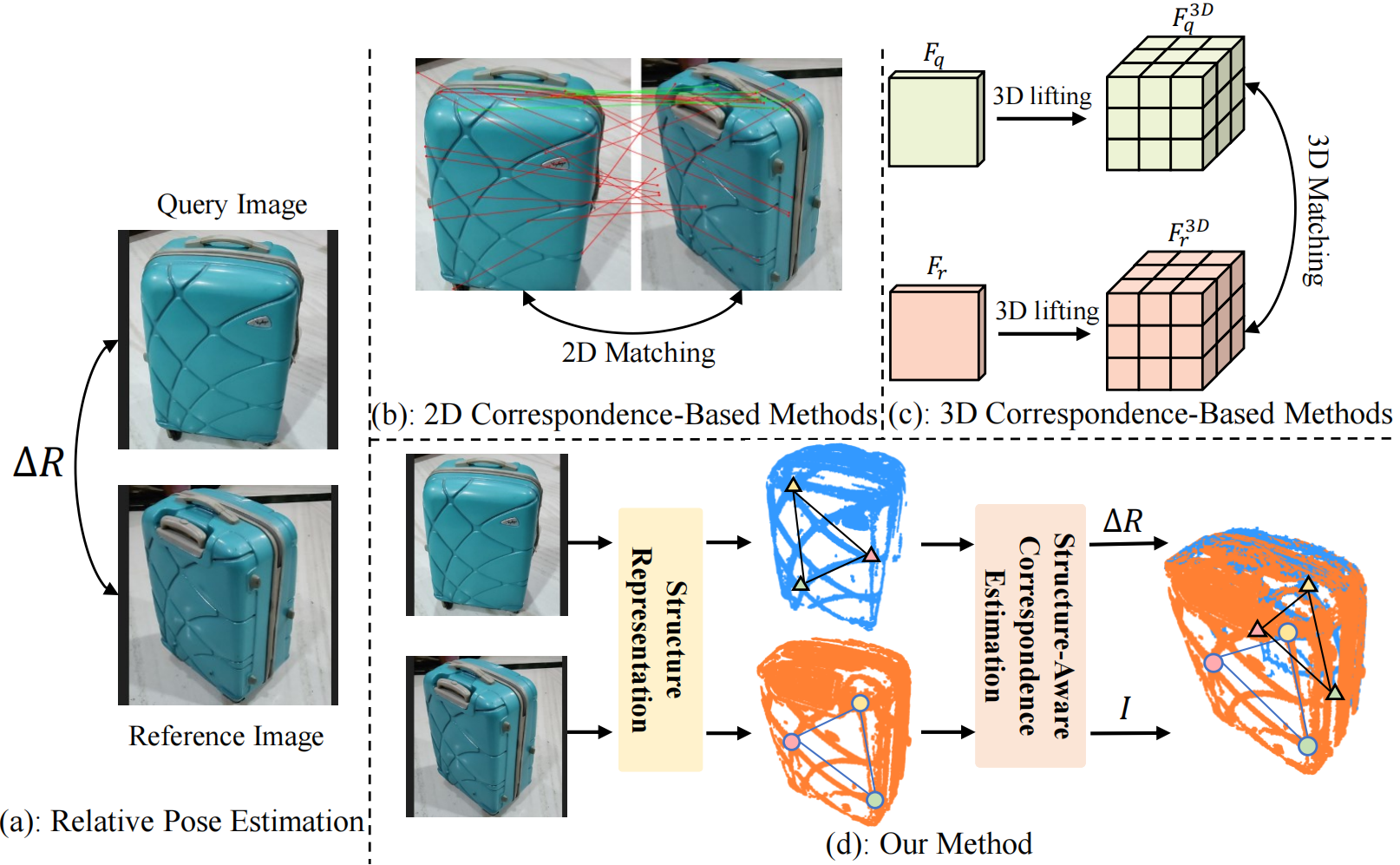

motivation

(a) Task depiction. Predict the relative pose ΔR between the query and reference images.

(b) 2D correspondence-based methods extract keypoints to conduct 2D-2D matching for pose estimation.

(c) 3D correspondence-based methods lift 2D features into 3D voxel features and conduct 3D-3D matching for pose estimation.

(d) Our method bypasses the feature matching and directly regresses 3D correspondences for pose estimation.

Abstract

Relative pose estimation provides a promising way for achieving object-agnostic pose estimation. Despite the success of existing 3D correspondence-based methods, the reliance on explicit feature matching suffers from small overlaps in visible regions and unreliable feature estimation for invisible regions. Inspired by humans' ability to assemble two object parts that have small or no overlapping regions by considering object structure, we propose a novel Structure-Aware Correspondence Learning method for Relative Pose Estimation, which consists of two key modules. First, a structure-aware keypoint extraction module is designed to locate a set of kepoints that can represent the structure of objects with different shapes and appearance, under the guidance of a keypoint based image reconstruction loss. Second, a structure-aware correspondence estimation module is designed to model the intra-image and inter-image relationships between keypoints to extract structure-aware features for correspondence estimation. By jointly leveraging these two modules, the proposed method can naturally estimate 3D-3D correspondences for unseen objects without explicit feature matching for precise relative pose estimation. Experimental results on the CO3D, Objaverse and LineMOD datasets demonstrate that the proposed method significantly outperforms prior methods, i.e., with 5.7°reduction in mean angular error on the CO3D dataset.

Method

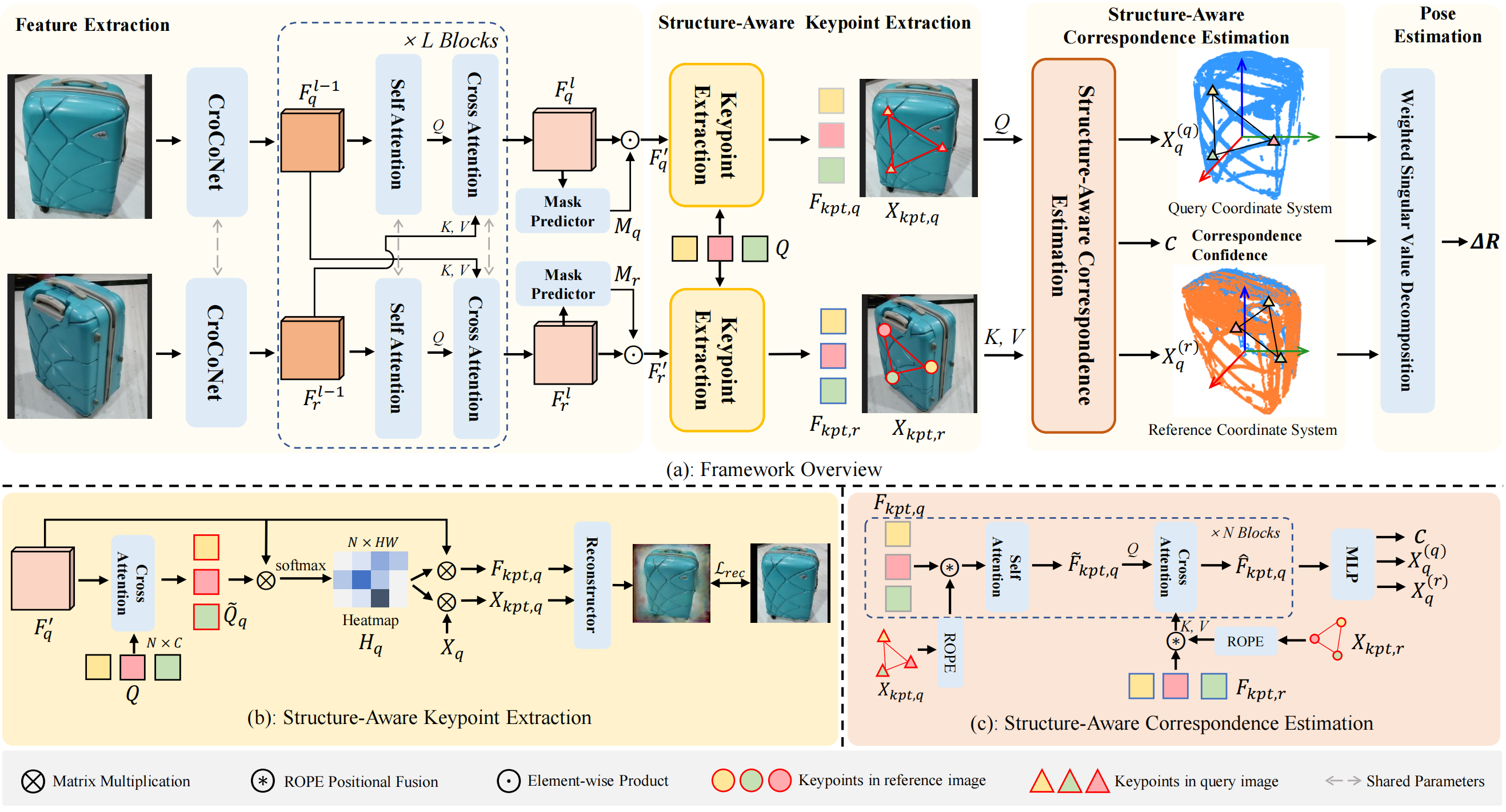

pipeline

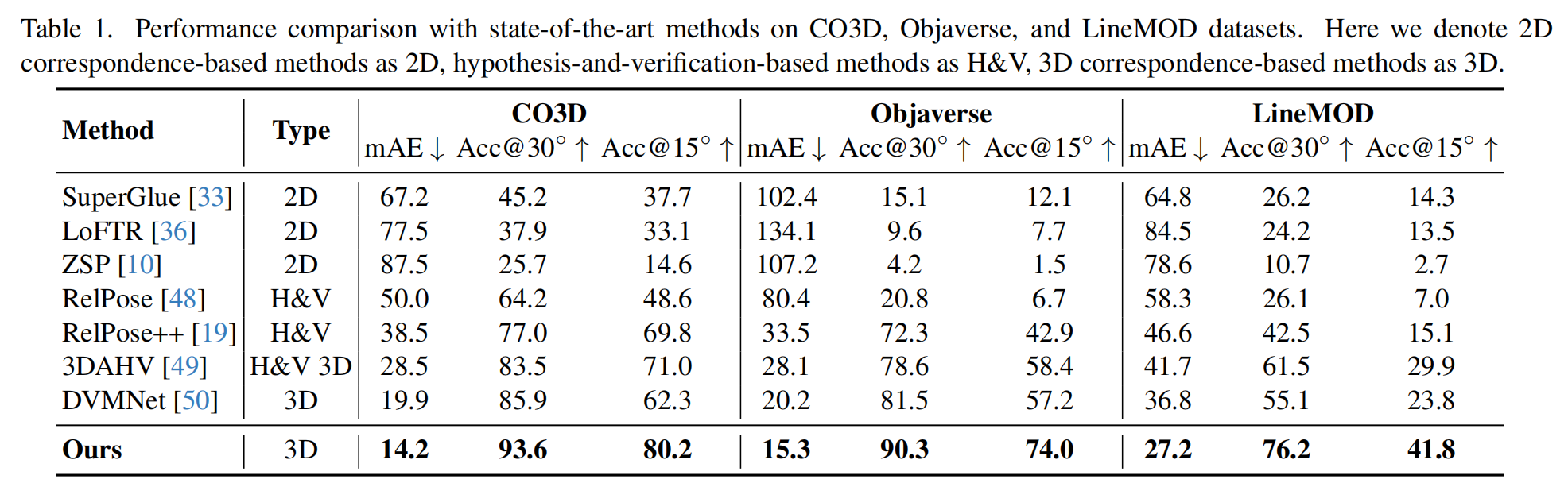

Experiment

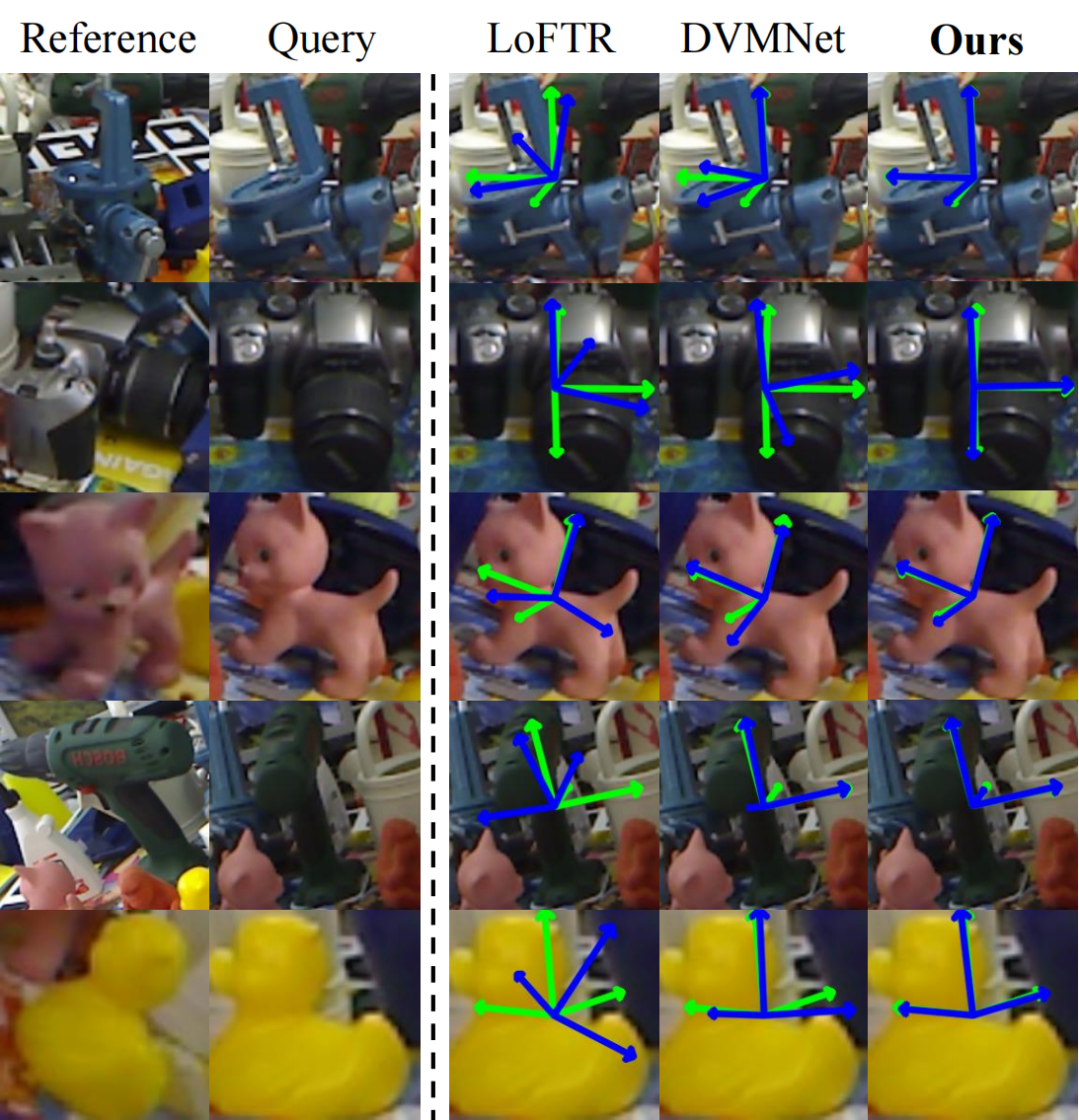

exp visual

BibTeX

@inproceedings{chen2025structure,
  title={Structure-Aware Correspondence Learning for Relative Pose Estimation},
  author={Chen, Yihan and Yang, Wenfei and Ren, Huan and Zhang, Shifeng and Zhang, Tianzhu and Wu, Feng},
  booktitle={Proceedings of the Computer Vision and Pattern Recognition Conference},
  pages={11611--11621},
  year={2025}
}
